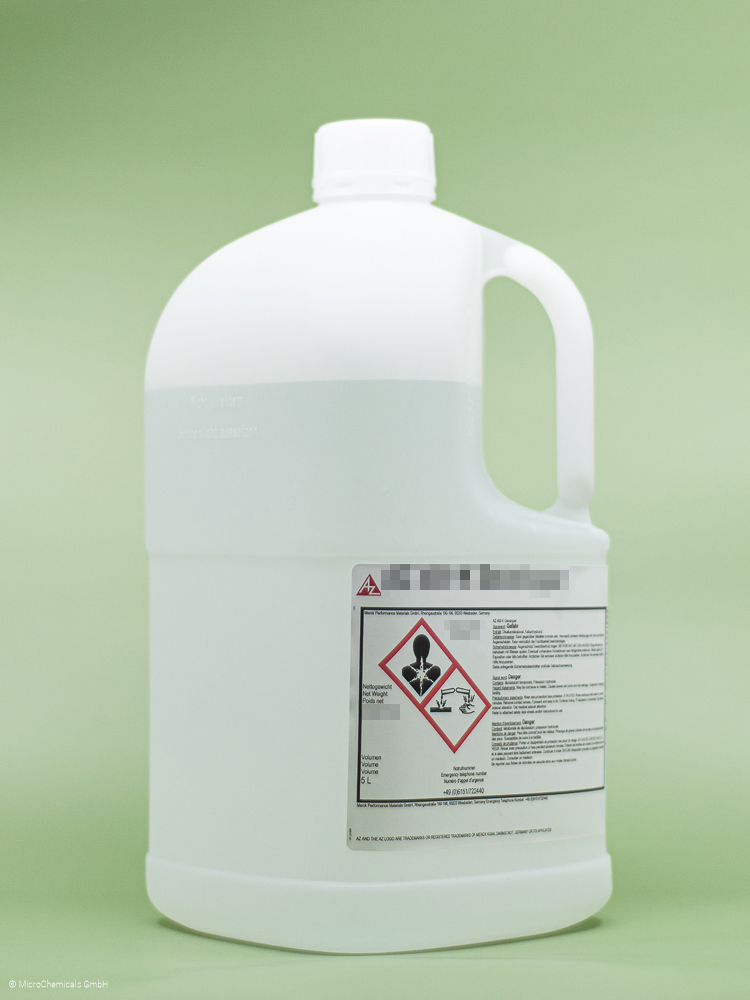

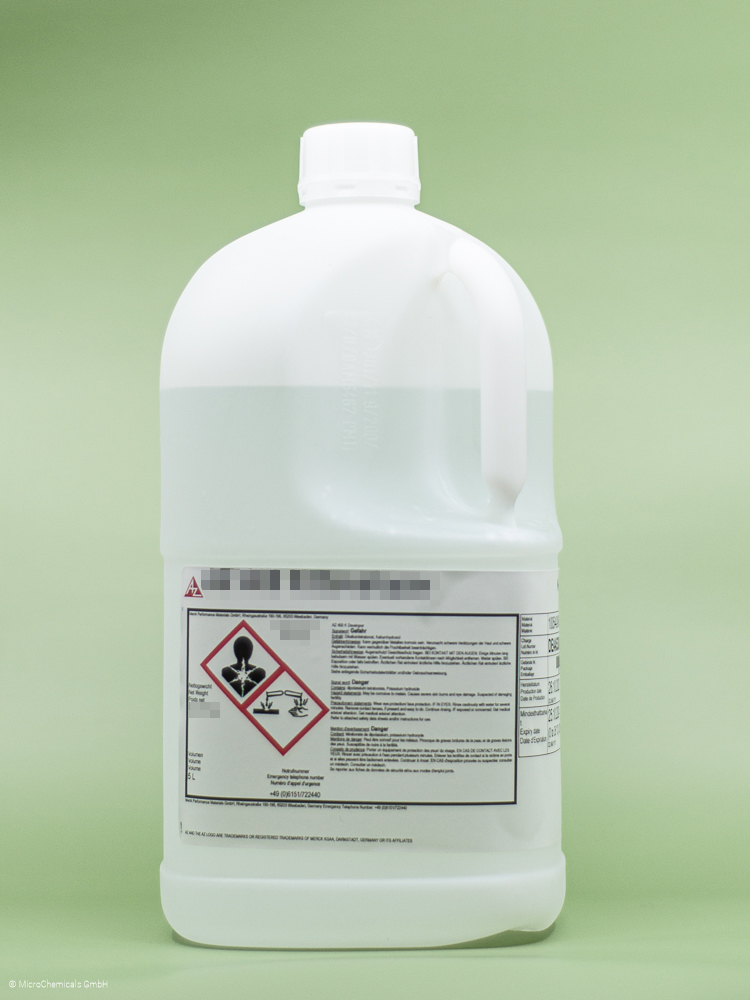

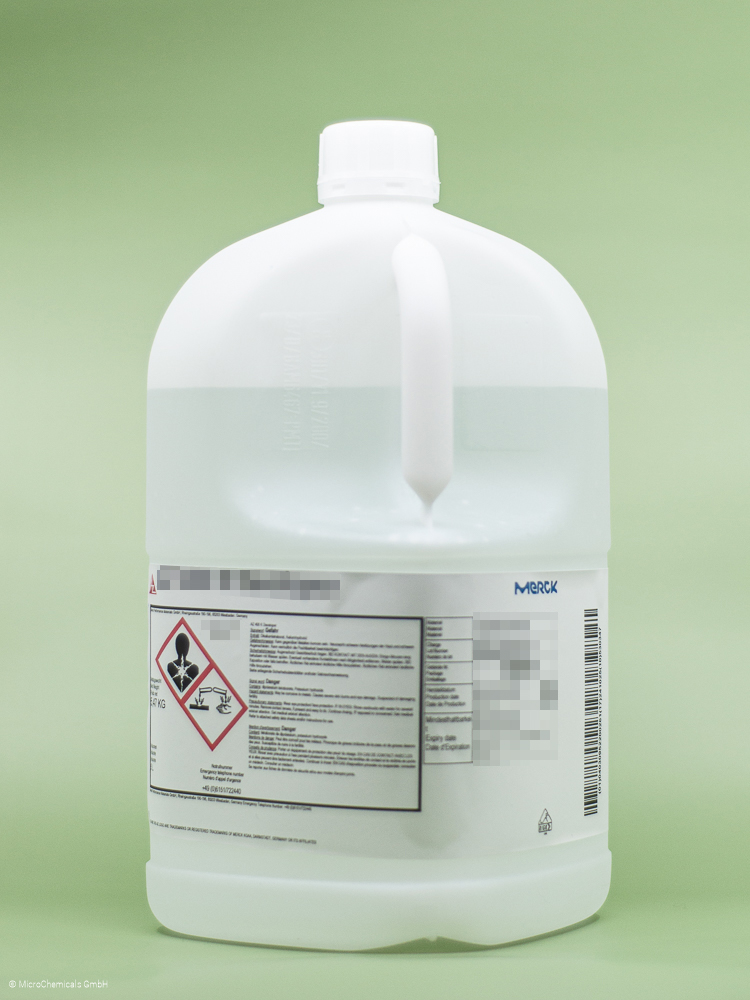

AZ 340 Developer - 5.00 l
Merck Performance Materials GmbH
AZ® 340 Developer is a high normality sodium based developer concentrate for use in on-site custom dilution applications.
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
1000340
Manufacturer:
Merck Performance Materials GmbH
Product information "AZ 340 Developer - 5.00 l"
AZ® 340 Developer
Inorganic Developers
General Information
AZ® 340 Developer is a high normality sodium based developer concentrate for use in on-site custom dilution applications. This developer concentrate is buffered for extended bath life and stable develop rates in batch processes. Dilute using 1 part AZ® 340 Developer to 4 parts DI water for high contrast processing. Developer normality (and develop rate) may be increased as required by increasing the AZ® 340 Developer to water ratio.
Further Information
MSDS:
Safety Data Sheet AZ® 340 Developer english
Sicherheitsdatenblatt AZ® 340 Developer german
TDS:
Technical Data Sheet AZ® 340 Developer english
Application Notes:
Development of Photoresist english
Entwicklung von Fotolack german
