Quartz Wafer

12 Products

Details

Quartz wafer 1 inch 500 um Z-Cut DSP

WQC10500200X0000XNN1

Quartz wafer 1 inch, thickness = 500 ± 20 µm, Z-Cut, 2-side polished, no flat, packaging units of 25 wafers

Stock: 175

From €14.00*

Details

Quartz wafer 2 inch 200 um Y-Cut DSP

WQB20200250X0000SNN1

Quartz wafer 2 inch (50.8 mm), Y-cut, thickness = 200 ± 25 µm, Y-Cut, 2-side polished, seedless, 1 SEMI Flat

Stock: 64

From €31.00*

Details

Quartz wafer 3 inch 1000 um Z-Cut DSP

WQC31000250X0000SNN1

Quartz wafer 3 inch, thickness = 1000 ± 25 µm, Z-Cut, 2-side polished, TTV < 10 µm, 1 SEMI Flat

Stock: 25

From €33.00*

Details

Quartz wafer 3 inch 1000 um Z-Cut DSP

WQC31000251X0000XNN1

Quartz wafer 3 inch, thickness = 1000 ± 25 µm, Z-Cut, 2-side polished, TTV < 1 µm, Ra<0.5 nm, no flat

Stock: 32

From €48.00*

Details

Quartz wafer 3 inch 1000 um Z-Cut DSP

WQC31000252X0000XNN1

Quartz wafer 3 inch, thickness = 1000 ± 25 µm, Z-Cut, 2-side polished, TTV < 2 µm, Ra<0.5 nm, no flat

Stock: 35

From €48.00*

Details

Quartz wafer 3 inch 200 um Z-Cut DSP

WQC30200250X0000SNN1

Quartz wafer 3 inch, thickness = 200 ± 25 µm, Z-Cut, 2-side polished, TTV < 10 µm, 1 SEMI Flat

Stock: 13

From €29.00*

Details

Quartz wafer 3 inch 500 um Y-Cut DSP

WQB30500250XXXXXSNN1

Quartz wafer 3 inch, thickness = 500 ± 25 µm, Y-Cut, 2-side polished, TTV < 10 µm, SAW grade, Quality factor Q > 2.4M, Etch channel density ECD < 30, inclusion concentration (ID): I grade

Stock: 10

From €41.00*

Details

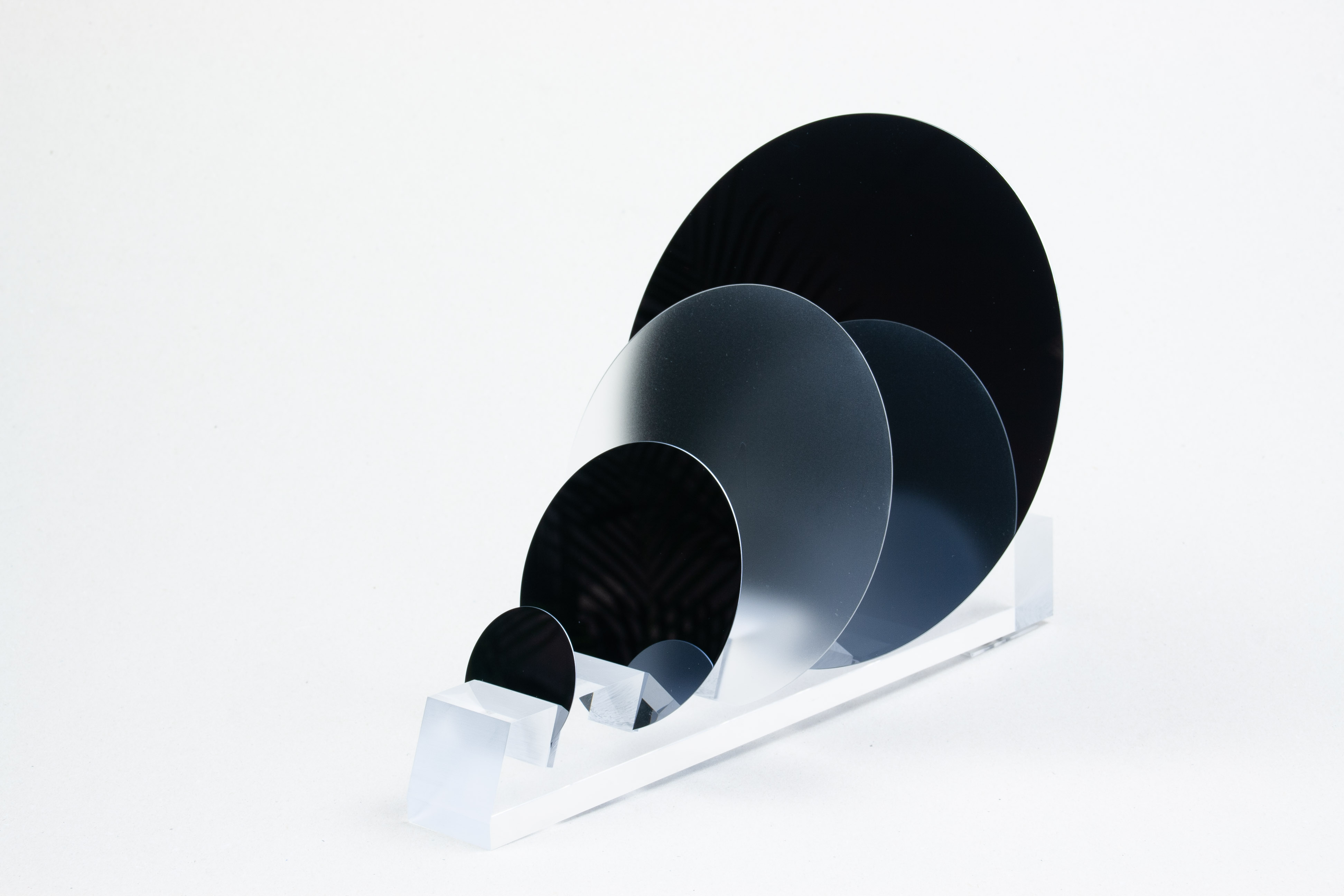

Quartz wafer 4 inch 1500 um Z-Cut DSP

WQC41500500X0000SNN1

Quartz wafer 4 inch, thickness = 1500 ± 50 µm, Z-Cut,seedless, 2-side polished, primary flat 32 mm on -X, top side Ra < 1 nm

Stock: 8

From €68.00*

Details

Quartz wafer 4 inch 200 um X-Cut DSP

WQA40200250XXXXXSNN1

Quartz wafer 4 inch, thickness = 200 ± 25 µm, X-Cut, 2-side polished, 1 SEMI Flat 32.5 +/-2.0 mm on X

Stock: 92

From €68.00*

Details

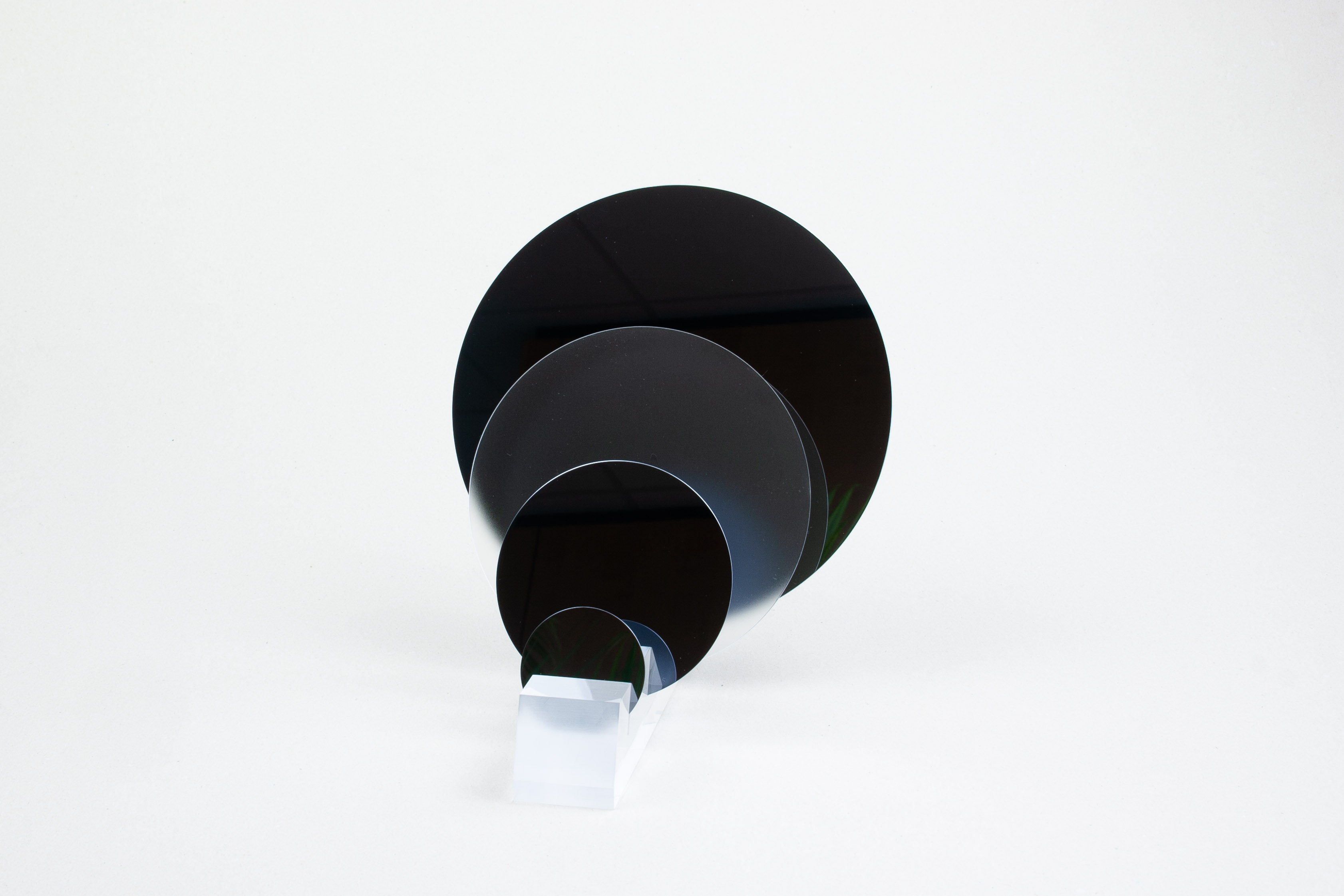

Quartz wafer 4 inch 500 um ST-Cut DSP

WQL40500250X0000SNN1

Quartz wafer 4 inch, thickness = 500 ± 25 µm, ST-Cut, 2-side polished, TTV < 10 µm, warp < 30 µm, Flat: 1, primary flat 32.5 mm

Stock: 152

From €37.00*

Details

Quartz wafer 49 x 49 mm 170 um X-Cut DSP

W9QA0490490170NNNNX1

Quartz wafer piece (49 x 49 mm), thickness = 170 ± 25 µm, X-Cut, 2-side polished, with seed, sales units of 10 pieces

Stock: 40

From €18.00*

Details

Square Quartz wafer 30 x 30 mm 700 um Z-Cut DSP

W9QC0300300700NNNNX1

Square Quartz wafer piece (30 x 30 mm), thickness = 700 ± 25 µm, Z-Cut, 2-side polished, seedless, units of 9 pieces

Stock: 164

From €8.00*
