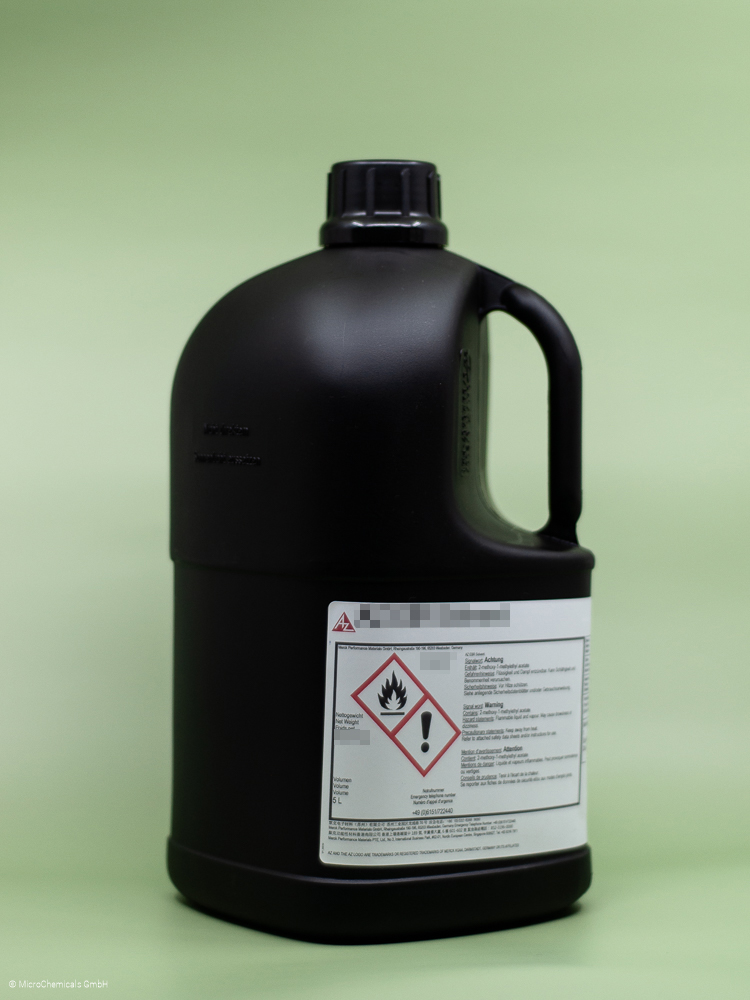

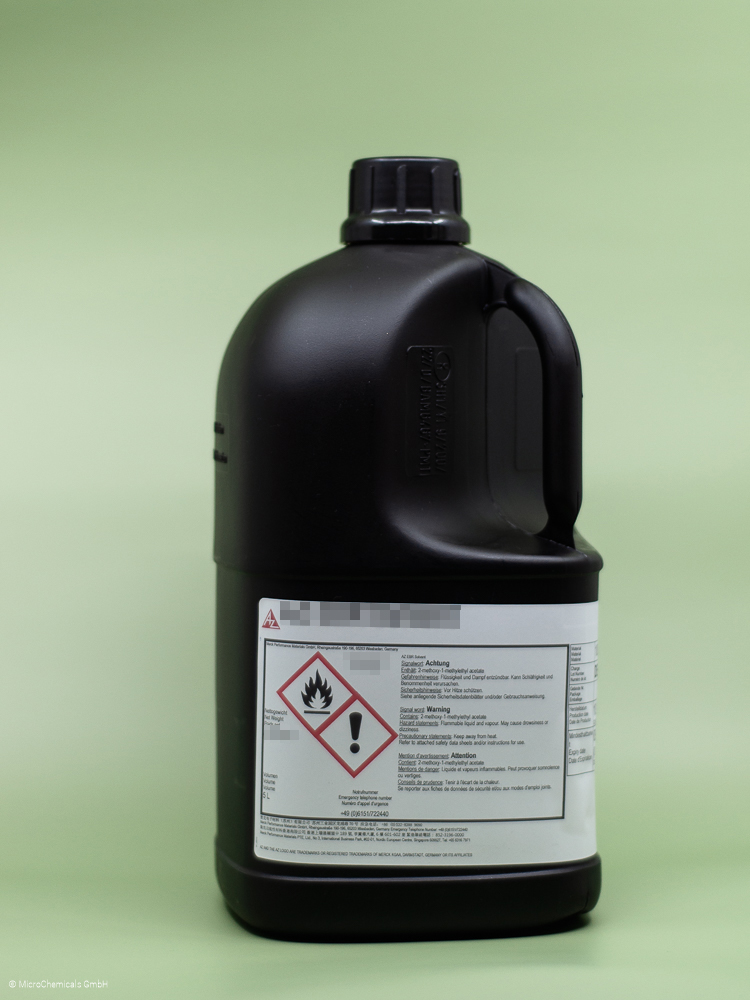

AZ EBR Solvent - 5.00 l
Merck Performance Materials GmbH
AZ® EBR Solvent is the main solvent of almost all our photoresists and can be used for dilution and edge bead removal.
slide 2 of 3
The prices are visible after registration.
Send us an inquiry if you have any questions about articles, purchase quantities, delivery times or sample requests!
Product number:
1000002
Manufacturer:
Merck Performance Materials GmbH
Product information "AZ EBR Solvent - 5.00 l"
AZ® EBR Solvent
1-methoxy-2-propyl-acetate
General Information
AZ® EBR Solvent is the main solvent/thinner of almost all AZ® and TI photoresists due to its low vapour pressure and its suppression of particle formation in the (further diluted) resist. Additionally, PGMEA is often used for edge bead removal, since its low vapour pressure prevents further thinning of the coated resist film.
Product Properties
- Density: 0.97 g/cm3
- Melting point: -66°C
- Boiling point: 125°C
- Flash point: 45°C
- Vapour pressure @ 20°C: 5 hPa
PGMEA Molecule
Further Information
MSDS:
Safety Data Sheet AZ® EBR Solvent english
Sicherheitsdatenblatt AZ® EBR Solvent german
Related products
slide 8 to 12 of 12

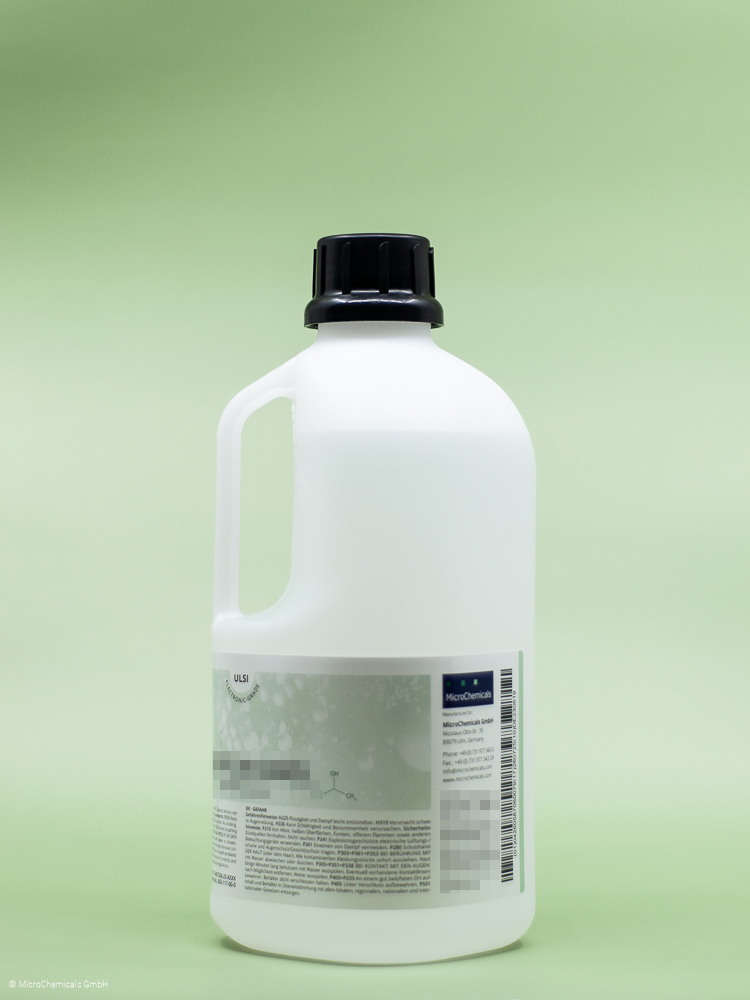

Acetone MC - 2.50 l - ULSI - EUD/EVE!
MACU1025
Manufacturer:
MicroChemicals GmbH
|
Bottle size:
2.50 l
|
Purity:
ULSI
Acetone
CH3COCH3
General Information
Acetone removes organic impurities from substrates and is well suited for greasy/oily contaminations. However, its large vapour pressure causes rapid drying together with a resorption of the contaminants on the substrate. Therefore an immediately subse¬quent rinsing step is recommended with a higher boiling solvent such as isopropanol.
Acetone is not well-suited as lift-off medium due to the high fire danger when heated and the trend of particles to be lifted to resorb onto the substrate.
Product Properties
Density: 0.79 g/cm^3
Melting point: 95°C
Boiling point: 56°C
Flash point: < -18°C
Vapour pressure @ 20°C: 244 hPa
Acetone Molecule
Further Information
MSDS:
Safety Data Sheet Acetone english (TECHNIC France)
Sicherheitsdatenblatt Aceton german (TECHNIC France)
Safety Data Sheet Acetone english (MicroChemicals GmbH)
Sicherheitsdatenblatt Aceton german (MicroChemicals GmbH)
Specs:
Specs Acetone ULSI (TECHNIC France)
Specs Acetone VLSI (TECHNIC France)
Specs Acetone ULSI (MicroChemicals GmbH)
Application Notes:
Solvents english
Lösemittel german
n-Butylacetat - 5.00 l - VLSI
TNBAV1050
Butyl Acetate
C6H12O2
General Information
Butyl Acetate is a solvent with a boiling point of 127°C. The vapour pressure at room temperature is 10.7 hPa. Butyl Acetate has the chemical formula C6H12O2. It can be easily solved in nonpolar (organic) solvents, but fairly bad in water (4.3 g per Litre).
Product Properties
Density: 0.88 g/cm3
Melting point: -77°C
Boiling point: 127°C
Flash point: 27°C
Vapour pressure @ 20°C: 10.7 hPa
Further Information
MSDS:
Safety Data Sheet Butyl Acetate (VLSI) english
Sicherheitsdatenblatt Butyl Acetate (VLSI) german
Specs:
Specs Butyl Acetate (VLSI)
Application Notes:
Solvents: Theory and Application english
Lösemittel: Theorie und Anwendung german
Further Information about Processing
Cyclopentanon - 2.50 l - ULSI
TCYU1025
Cyclopentanone
C5H8O
General Information
Cyclopentanone is often used in conjunction with epoxy-based resist formulations, as well as an organic developer for cross-linking photoresists such as e-beam resists.
Product Properties
Density: 0.88 g/cm3
Melting point: -77°C
Boiling point: 127°C
Flash point: 27°C
Vapour pressure @ 20°C: 10.7 hPa
Cyclopentanone Molecule
Further Information
MSDS:
Safety Data Sheet Cyclopentanon (ULSI) english
Sicherheitsdatenblatt Cyclopentanon (ULSI) german
Specs:
Specs Cyclopentanon (ULSI)
Application Notes:
Solvents: Theory and Application english
Lösemittel: Theorie und Anwendung german
Further Information about Processing
DMSO - 2.50 l - ULSI
MDMU1025
DMSO
Dimethyl Sulfoxide
General Information
Due to its low vapour pressure and its water solubility, DMSO is an excellent stripper for resists respectively Lift-off media and is a non-toxic substitute for the NMP, which has been classified as toxic since a while. The optional addition of Cyclopentanone or MEK increases the performance of the stripper for certain applications and significantly lowers the melting point of pure DMSO.
NOTE:
The solvent DMSO (dimethyl sulfoxide) has a melting point just below room temperature, so it can possi¬bly freeze in storage in cooler rooms. Thawing may require several days, but afterwards the product can still be used as it is.
For more details please download the info letter.
Product Properties
Density: 1.1 g/cm3
Melting point: 18°C
Boiling point: 189°C
Flash point: 87°C
Vapour pressure @ 20°C: 0.56 hPa
DMSO Molecule
Further Information
MSDS:
Safety Data Sheet DMSO (ULSI) english
Sicherheitsdatenblatt DMSO (ULSI) german
Specs:
Specs DMSO (ULSI)
Application Notes:
Solvents: Theory and Application english
Lösemittel: Theorie und Anwendung german
Photoresist Removal english
Fotolack entfernen german
Further Information about Processing

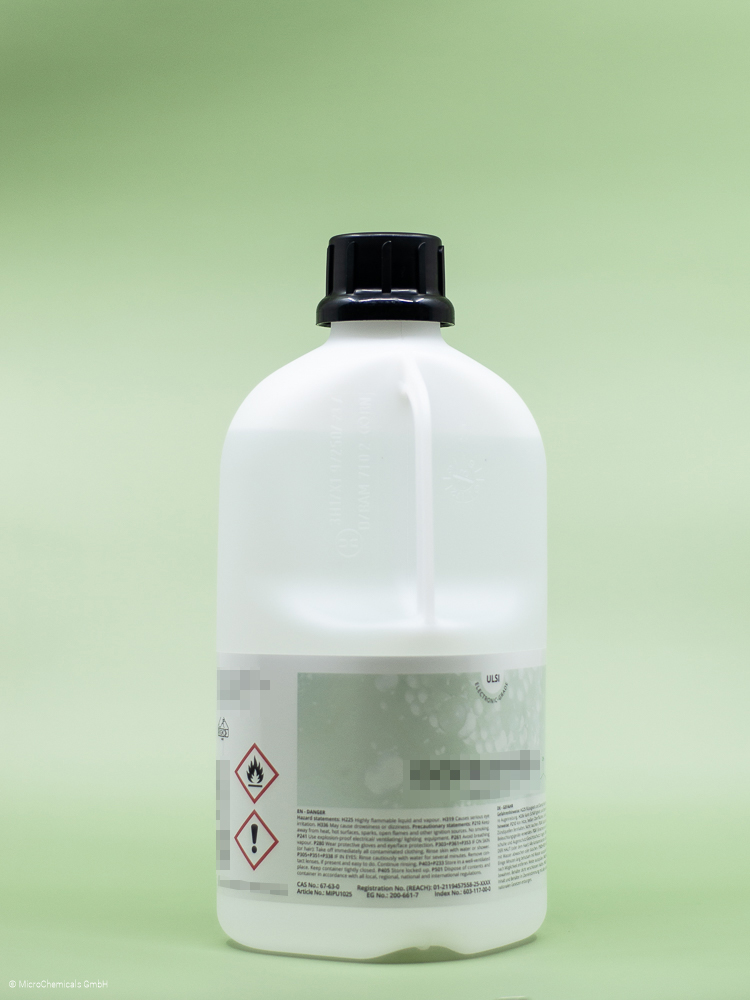

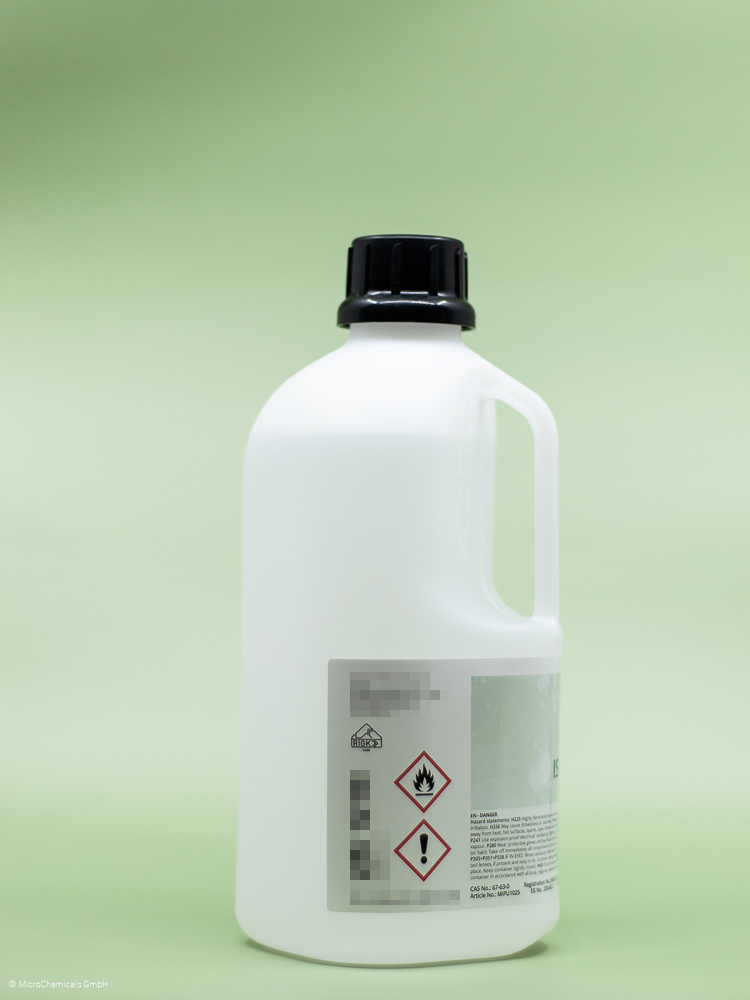

Isopropyl Alcohol MC - 2.50 l - ULSI
