Quartz wafer 1 inch 500 um Z-Cut DSP
Ab
14,00 €*
WQC10500200X0000XNN1
Quartz wafer 1 inch, thickness = 500 ± 20 µm, Z-Cut, 2-side polished, no flat, packaging units of 25 wafers
Quartz wafer 2 inch 200 um Y-Cut DSP
Ab
31,00 €*
WQB20200250X0000SNN1
Quartz wafer 2 inch (50.8 mm), Y-cut, thickness = 200 ± 25 µm, Y-Cut, 2-side polished, seedless, 1 SEMI Flat
Quartz wafer 2 inch 700 um ST-Cut DSP
Ab
17,00 €*
WQL20700250XXXXXSNN1
Quartz wafer 2 inch, thickness = 700 ± 25 µm, ST-Cut, 2-side polished, TTV < 10 µm, 1 SEMI Flat

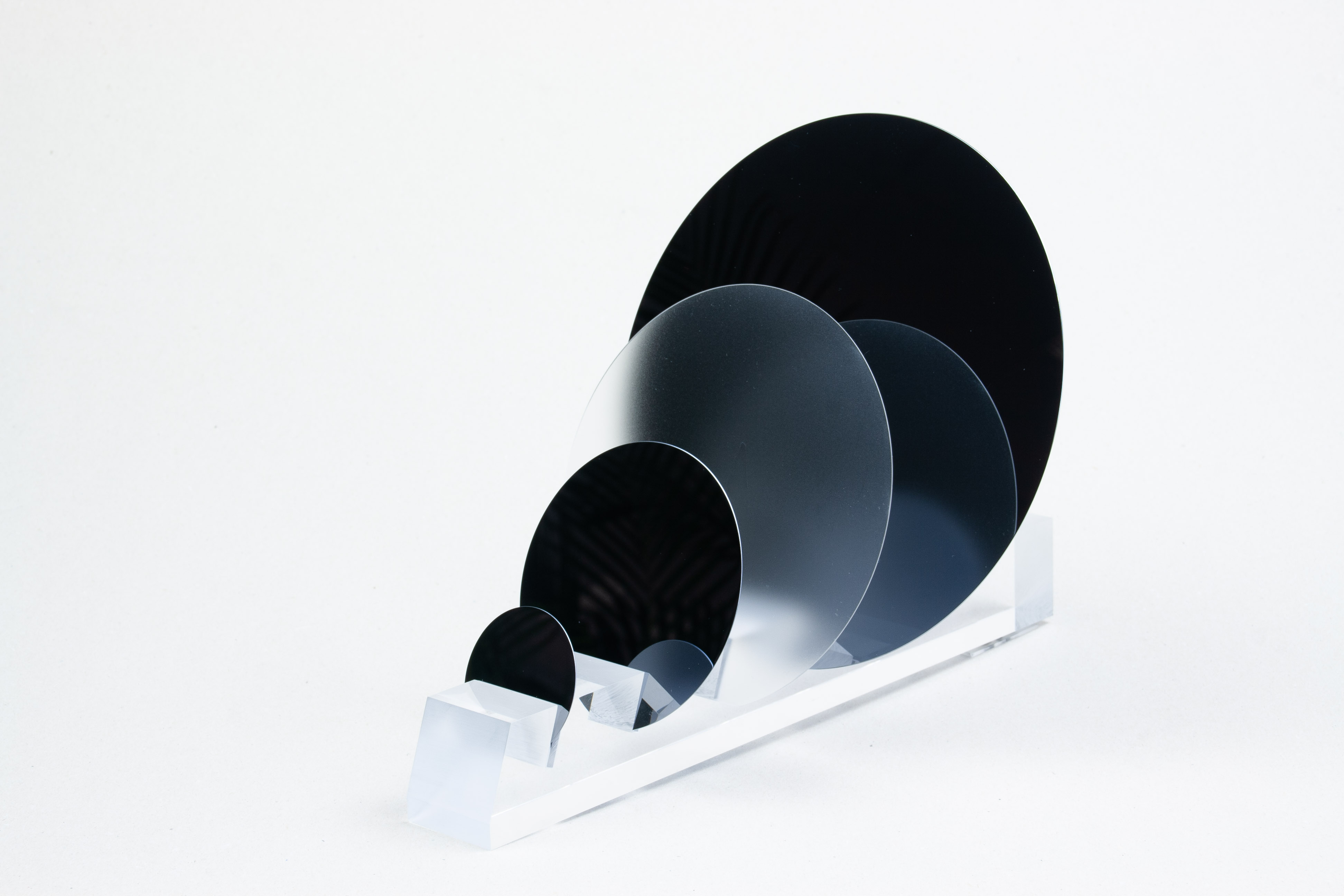

Quartz wafer 3 inch 1000 um Z-Cut DSP
Ab
33,00 €*
WQC31000250X0000SNN1
Quartz wafer 3 inch, thickness = 1000 ± 25 µm, Z-Cut, 2-side polished, TTV < 10 µm, 1 SEMI Flat
Quartz wafer 3 inch 1000 um Z-Cut DSP
Ab
48,00 €*
WQC31000251X0000XNN1
Quartz wafer 3 inch, thickness = 1000 ± 25 µm, Z-Cut, 2-side polished, TTV < 1 µm, Ra<0.5 nm, no flat
Quartz wafer 3 inch 1000 um Z-Cut DSP
Ab
48,00 €*
WQC31000252X0000XNN1
Quartz wafer 3 inch, thickness = 1000 ± 25 µm, Z-Cut, 2-side polished, TTV < 2 µm, Ra<0.5 nm, no flat
Quartz wafer 3 inch 200 um Z-Cut DSP
Ab
29,00 €*
WQC30200250X0000SNN1
Quartz wafer 3 inch, thickness = 200 ± 25 µm, Z-Cut, 2-side polished, TTV < 10 µm, 1 SEMI Flat
Quartz wafer 3 inch 500 um Y-Cut DSP
Ab
41,00 €*
WQB30500250XXXXXSNN1
Quartz wafer 3 inch, thickness = 500 ± 25 µm, Y-Cut, 2-side polished, TTV < 10 µm, SAW grade, Quality factor Q > 2.4M, Etch channel density ECD < 30, inclusion concentration (ID): I grade
Quartz wafer 4 inch 1500 um Z-Cut DSP
Ab
68,00 €*
WQC41500500X0000SNN1
Quartz wafer 4 inch, thickness = 1500 ± 50 µm, Z-Cut,seedless, 2-side polished, primary flat 32 mm on -X, top side Ra < 1 nm

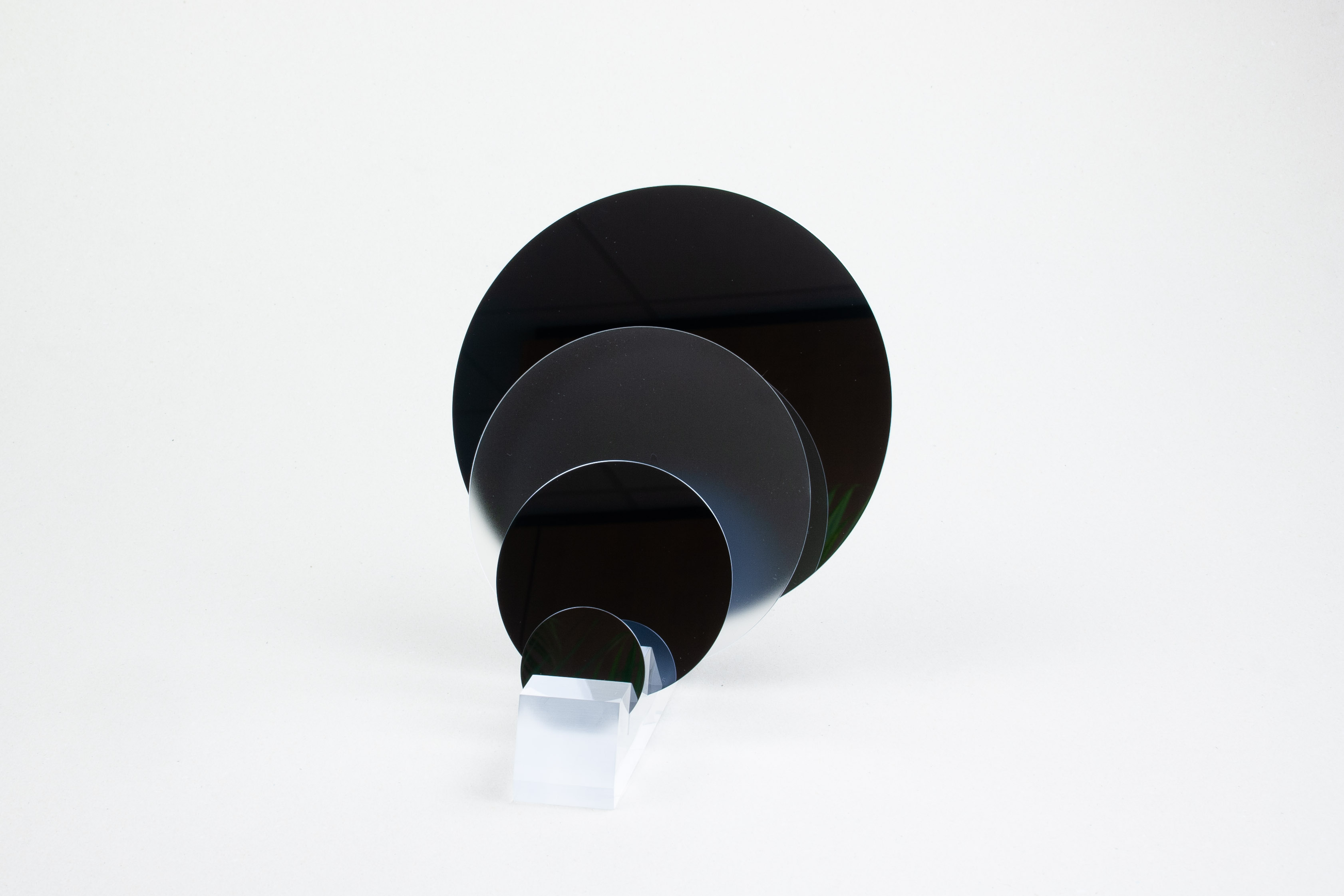

Quartz wafer 4 inch 200 um X-Cut DSP
Ab
68,00 €*
WQA40200250XXXXXSNN1
Quartz wafer 4 inch, thickness = 200 ± 25 µm, X-Cut, 2-side polished, 1 SEMI Flat 32.5 +/-2.0 mm on X
Quartz wafer 4 inch 500 um ST-Cut DSP
Ab
37,00 €*
WQL40500250X0000SNN1
Quartz wafer 4 inch, thickness = 500 ± 25 µm, ST-Cut, 2-side polished, TTV < 10 µm, warp < 30 µm, primary flat 32.5 mm
Quartz wafer 49 x 49 mm 170 um X-Cut DSP
Ab
18,00 €*
W9QA0490490170NNNNX1
Quartz wafer piece (49 x 49 mm), thickness = 170 ± 25 µm, X-Cut, 2-side polished, with seed, sales units of 10 pieces
Square Quartz wafer 30 x 30 mm 700 um Z-Cut DSP
Ab
8,00 €*
W9QC0300300700NNNNX1
Square Quartz wafer piece (30 x 30 mm), thickness = 700 ± 25 µm, Z-Cut, 2-side polished, seedless, units of 9 pieces
